Rectangular

Rectangular tile 4-fold, size 12'' x 36'', steel 24ga., PVDF finish colour Coppertone Premium (23). Horizontal staggered.

Rectangular tile 2-fold, size 12'' x 24'', aluminum 0.8, PVDF finish colour Slate Grey (20). Horizontal staggered installation.

Rectangular tile 4-fold, custom size 9'' x 13'', steel 24ga., PVDF finish colour Ascot White (10). 30 degrees staggered.

Rectangular tile. Concealed fasteners.

Installation : Horizontally, vertically, 45 degree, aligned, staggered rows, on full surface or open framing.

Standard coverage sizes :

4-fold tile (higher relief)
241mm x 527mm (9 ½” x 20 ¾”). 0.13 m2 (1.37 ft²).
305mm x 610mm (12” x 24”). 0.19 m2 (2.00 ft²).
305mm x 914mm (12” x 36”). 0.28 m2 (3.00 ft²).

2-fold tile (lower relief)
229mm x 533mm (9” x 21”). 0.12 m2 (1.31 ft²).
305mm x 610mm (12” x 24”). 0.19 m2 (2.00 ft²).
305 mm x 914mm (12” x 36”). 0.28 m2 (3.00 ft²).

Other dimensions are custom-made.

Material : Pre-painted steel 24 ga. and pre-painted aluminum 0.8mm (0,032”), PVDF finish Kynar® 500 or Perspectra Series™, more than 40 colors available. Also available with stainless steel, copper and Galvalume Plus. High resistance finish.

2-FOLD (SIDING) 4-FOLD (SIDING / ROOF) 2-FOLD (SIDING) / 4-FOLD (SIDING / ROOF)

PVDF finishes standard colors (steel and aluminum). Color may have slight lot-to-lot variations.

Black

Classic Bronze

Medium Bronze

Harford Green

Forest Green

Hemlock Green

Teal

Patina Green

Chocolate Brown

Boysenberry

Redwood

Mission Red

Sierra Tan

Rawhide

Concord Cream

Almond

Sandstone

Regal Blue

Slate Blue

Rocky Grey

Siam Blue

Charcoal Grey

Slate Grey

Dove Grey

Ascot White

Bone White

PVDF matte colors (steel and aluminum). Color may have slight lot-to-lot variations.

Almond

Thunder Grey

Anchor Grey

Ash Grey

Char Brown

Matte Black

PVDF Premium Finish (steel and aluminum). Color may have slight lot-to-lot variations.

Antique Patina

Champagne

Coppertone

Titanium

Silversmith

Discontinué / Discontinued

Brite Red

Galvalume Plus (steel only)

Galvalume Plus

Perspectra Series (steel only). Color may have slight lot-to-lot variations.

Metro Brown

8228

Mahogany

8719

Dark Brown

8229

Coffee

8326

Tan

8315

Charcoal

8306

Stone Grey

8305

Regent Grey

8730

Black

8262

White

8317

Forest Green

8307

Medium Green

8329

Mist Green

8256

Turquoise

8258

Slate Blue

8260

Royal Blue

8790

Heron Blue

8330

Orange

8234

Red

8250

Bright Red

8386

Tile Red

8259

Antique Linen

8696

Ivory

8802

Metallic Grey

QC7500

Rectangular

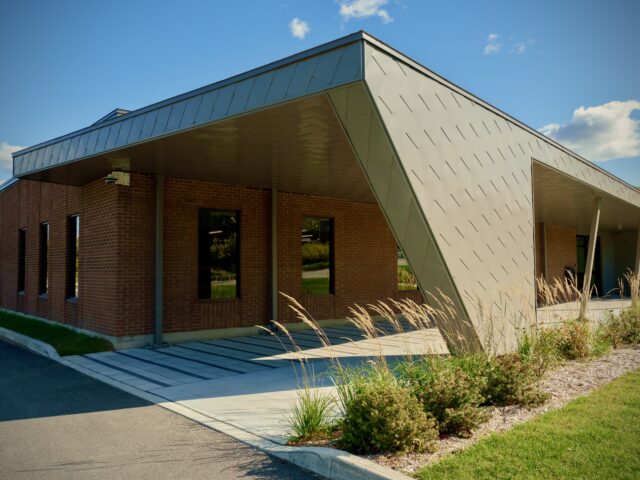

SEE THE PRODUCT IN INSTALLATION

SEE THE PROJECT IN PICTURES
